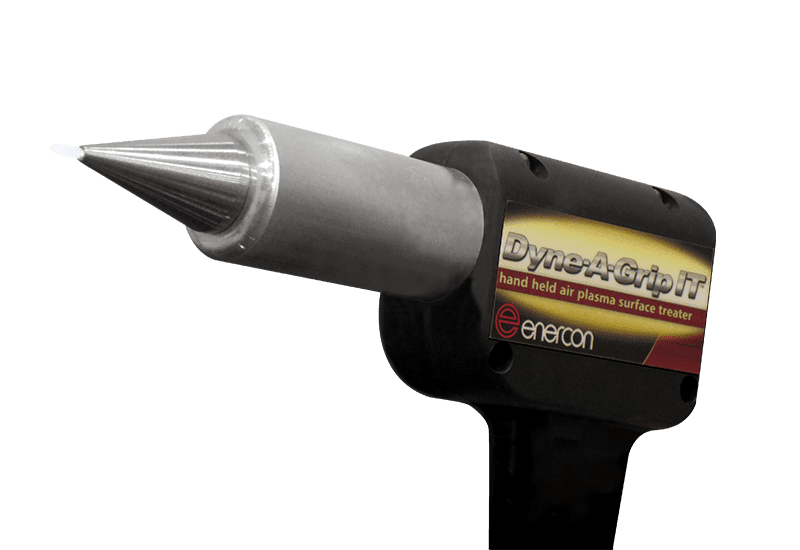

Dyne-A-Grip IT™ Hand held Plasma Treater

Improve Surface Adhesion without automating your process

The Dyne-A-Grip IT™ integrates Enercon’s high performance plasma treating technology into a hand held package that’s perfect for lab environments, plasma feasibility studies, and light production.

It generates gentler and lower temperature plasma than comparative production grade units. The Dyne-A-Grip IT activates a variety of surfaces such as polymers, metals, silicones and rubber.

Power Control

Easy Operation

Improve Adhesion

How Blown-ion™ Plasma Treating Works

Blown-ion™ air plasma pushes pressurized air past a single electrode which discharges inside the treater head. The electrode creates positively charged ions in the surrounding air particles. The air pressure then forces the air particles to accelerate out of the tip of the head as a high velocity stream of charged ions directed toward the object’s surface.

Through direct contact, these particles clean, etch and functionalize the object’s surface increasing its surface energy and making it more receptive to inks, coatings and adhesives. Ultimately, enhancing adhesion for better quality results.

Dyne-A-Grip IT™

Enercon systems are designed to operate in a maximum ambient temperature of 40°C (104°F) @ 80% relative humidity, non-condensing.

Dyne-A-Grip IT™

KEY FEATURES For Successful Surface Treatment

  • Easy Operation

    • Pull & hold trigger to activate plasma discharge
  • Power Control

    • Ability to adjust intensity of plasma discharge
  • Protective Circuitry

    • Monitors current, power & air flow
  • Rugged, High Voltage Power

    • Internally mounted transformer rated for long-term continuous duty reliability
  • Solid-State Construction

    • Reliable solid-state devices conservatively sized & rated for high temperature

    • Virtually no maintenance
