Improve Ink Adhesion with CoronaFlex™ Corona Treater

Improving ink adhesion has never been easier with the new CoronaFlex™ corona treater. It is specifically designed for high speed flexographic presses and versatile digital printing applications.

CoronaFlex™ offers OEMs and printers powerful and reliable corona treatment through a compact footprint, intuitive operator interface and industry leading application expertise.

Touchscreen Control

Easy Operation

Improve Adhesion

Key Components

  • Powerful ceramic electrodes
  • Locking electrode drawer for quick changeover
  • High performance ground roll options
    • Bare Roll:  for standard applications
    • Conductive Ceramic:  prevents roll oxidation & reduces maintenance
    • “H” Non Conductive Ceramic: Enercon’s proprietary roll covering for High Definition Corona
  • Exhaust blower to cool electrodes & remove ozone
  • Reliable Power Supply Technology in two models

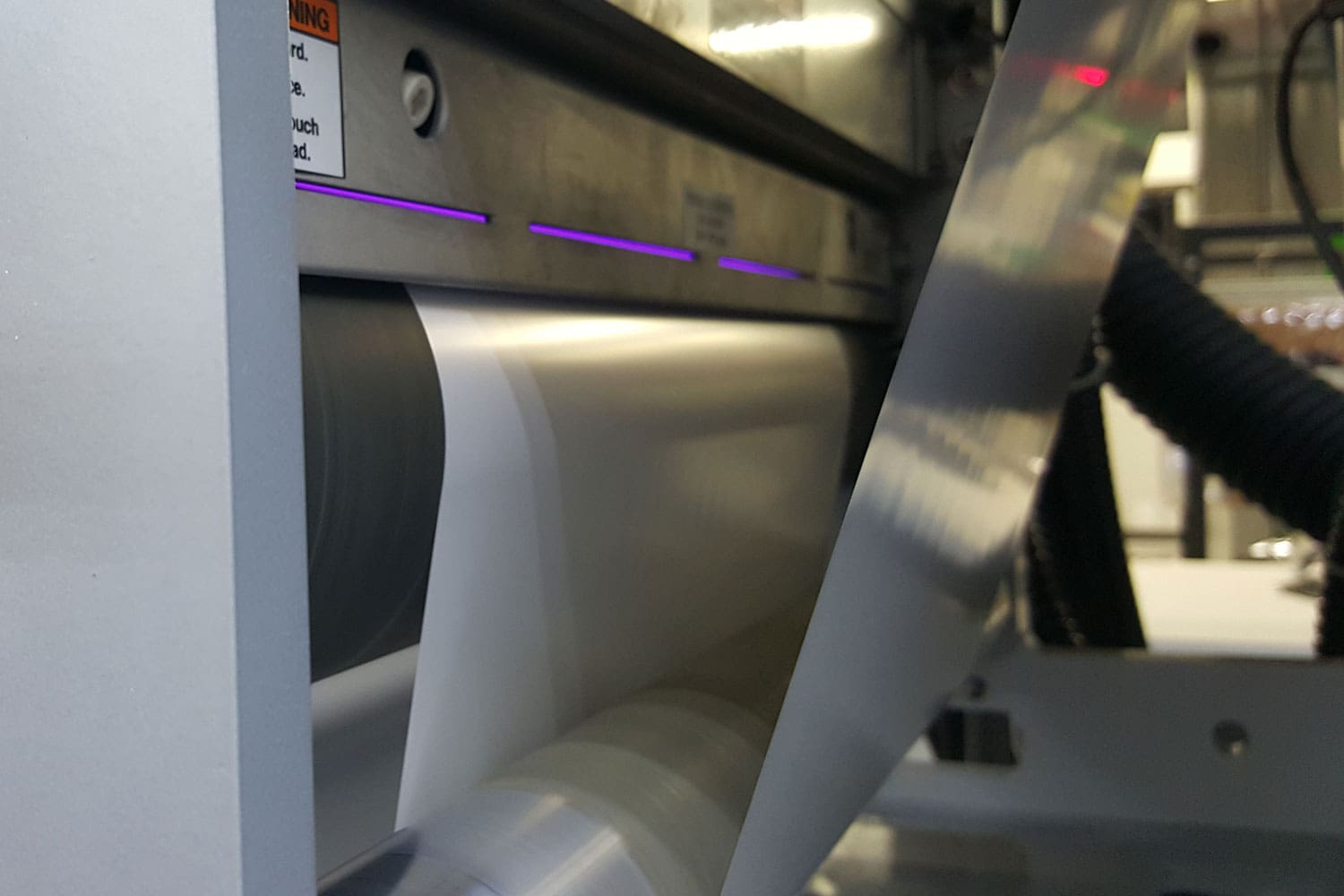

Narrow Web for Tag & Label
The purple glow of corona is visible through a viewing window.

Compak™ Pro Power Supply with Artificial Intelligence

Intuitive Touch Screen Remote Interface Control
Local/Remote/Network Control Options
Watt Density Control Option
Integrated Blower Control Option

Support & Data
Advanced Diagnostics
Data Logging- detailed fault & event logs
On-screen troubleshooting guides
Supervisory Password Lockout
Maintenance Reminders & Logs

Remote Support & Upgrades
Smart capture data for remote analysis
USB Data Download & Software Updates
Industry 4.0 compatible

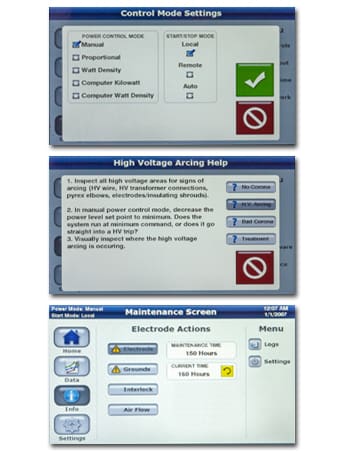

CoronaFlex™ - Touchscreen Control Features
coronaflex-remote-control-membrane

Standard Power Supply with Remote Membrane

Digital Watt Meter
Power Up/Down
LED Status Lights (Operating Status/Faults)
Manual or Remote Power & Auto Start Control

CoronaFlex™ System Components

Treater Station:
Electrode assembly drawer
Ground roll
Integrated interface (standard system)

Power Supply
High Voltage Transformer
Exhaust Blower (Enercon or Customer Supplied)

Installation:

COMPACT FOOTPRINT
Integrate into any position on all OEM presses

SIMPLE TO INSTALL
All inclusive package engineered for easy start-up

QUICK START GUIDE
Simple instructions to guide your installation & operation

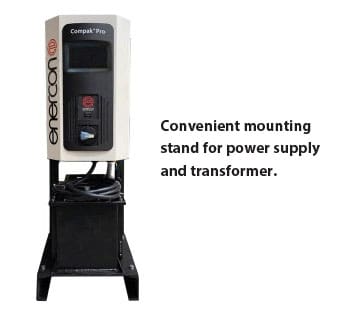

Compak™ Pro - On Stand

Enercon systems are designed to operate in a maximum ambient temperature of 40°C (104°F) @ 80% relative humidity, non-condensing.

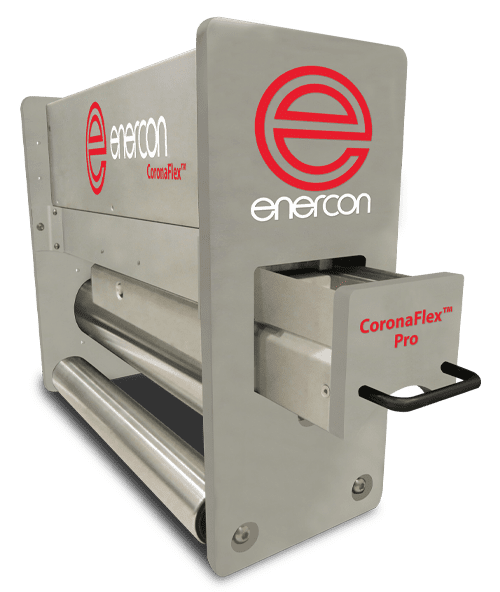

CoronaFlex™ Pro

KEY FEATURES CoronaFlex™ Pro

  • Improve Ink Adhesion for Flexo & Digital Printers

  • Powerful Treatment

  • Easy to Use Intuitive Touch Screen Control

  • Treat Conductive & Non-Conductive Materials

  • Compatible with any OEM Printing Press

  • Treats Web Widths up to 32" (810mm)

OPTIONAL EQUIPMENT Which may be recommended or specified:

  • Customer Interface Cable

    Allows customer to easily and conveniently interface with the Deluxe Corona Flex system.

  • Compak™ Pro Remote Operator Interface

    Install in an area most convenient for your operators, including 20 Ft. interconnection cable.

  • Unwind/Rewind Stand

    Perfect for lab use, a cost effective solution for off-line treatment requirements

  • Deluxe Unwind/Rewind Stand

    Can run production volume material and speeds without an existing web line.

  • High Voltage Switching

    High Voltage Switching* option gives you this flexibility by allowing you to switch the corona on and off between sides.

    *Included with 2-Sided Corona Flex systems.

  • Hose and Fitting Kit

    Includes inlet blower adapter, station adapters, flexible ducting and all necessary hose clamps and fittings for 1 & 2 sided treaters.

  • Mobile Cart

    Power supply, treater, transformer and blower all mounted together for easy maneuverability from line to line

  • Power Supply Stand

    Compact footprint, includes mounting of Power Supply,
    HV Transformer and HV Switching.

  • Standard Remote Control Operator Interface

    Convenient access to power supply controls when the treater station is located in an inaccessible area. 20 Ft. interconnection cable included.

  • Spare Parts Kit

    Kits typically include common wear items like fuses, power components and mechanically stressed items.

  • Spare Electrode Cartridge

    Having a spare electrode cartridge enables you to continue production while performing standard maintenance/cleaning on the original cartridge.

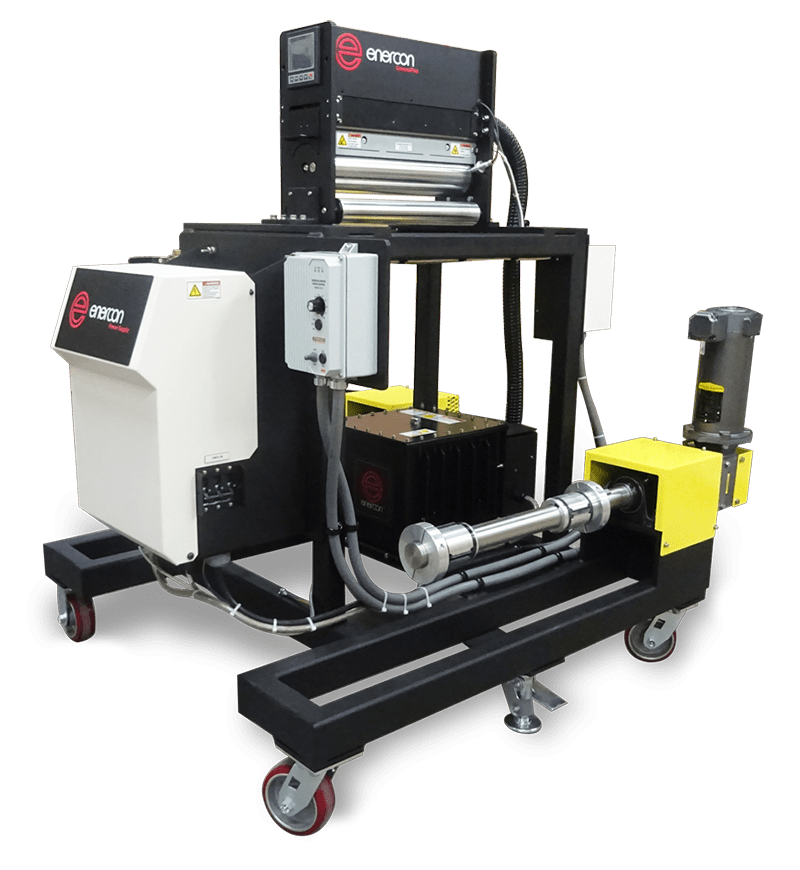

CoronaFlex Unwind-Rewind Stand

ORIENTATION OPTIONS

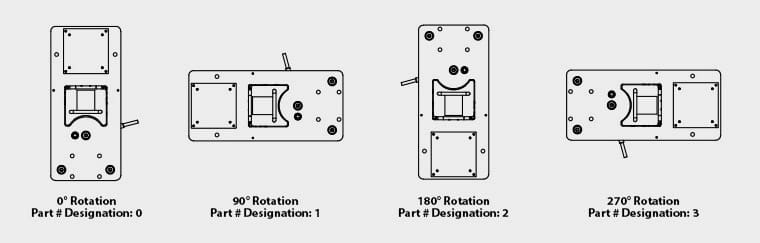

Station Orientation

CoronaFlex™ - Station Orientation Options

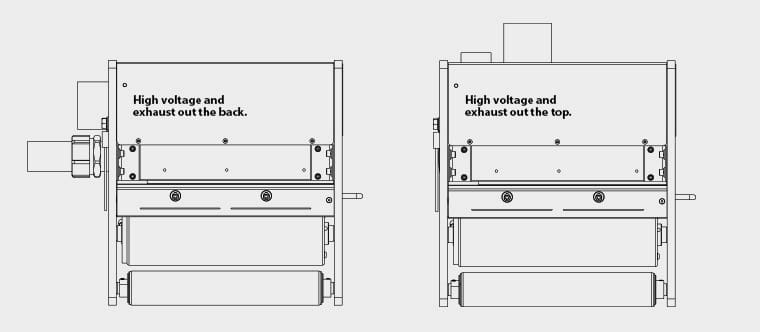

Exhaust Orientation

CoronaFlex™ - Exhaust Orientation

CORONA TREATING POWER SUPPLIES
