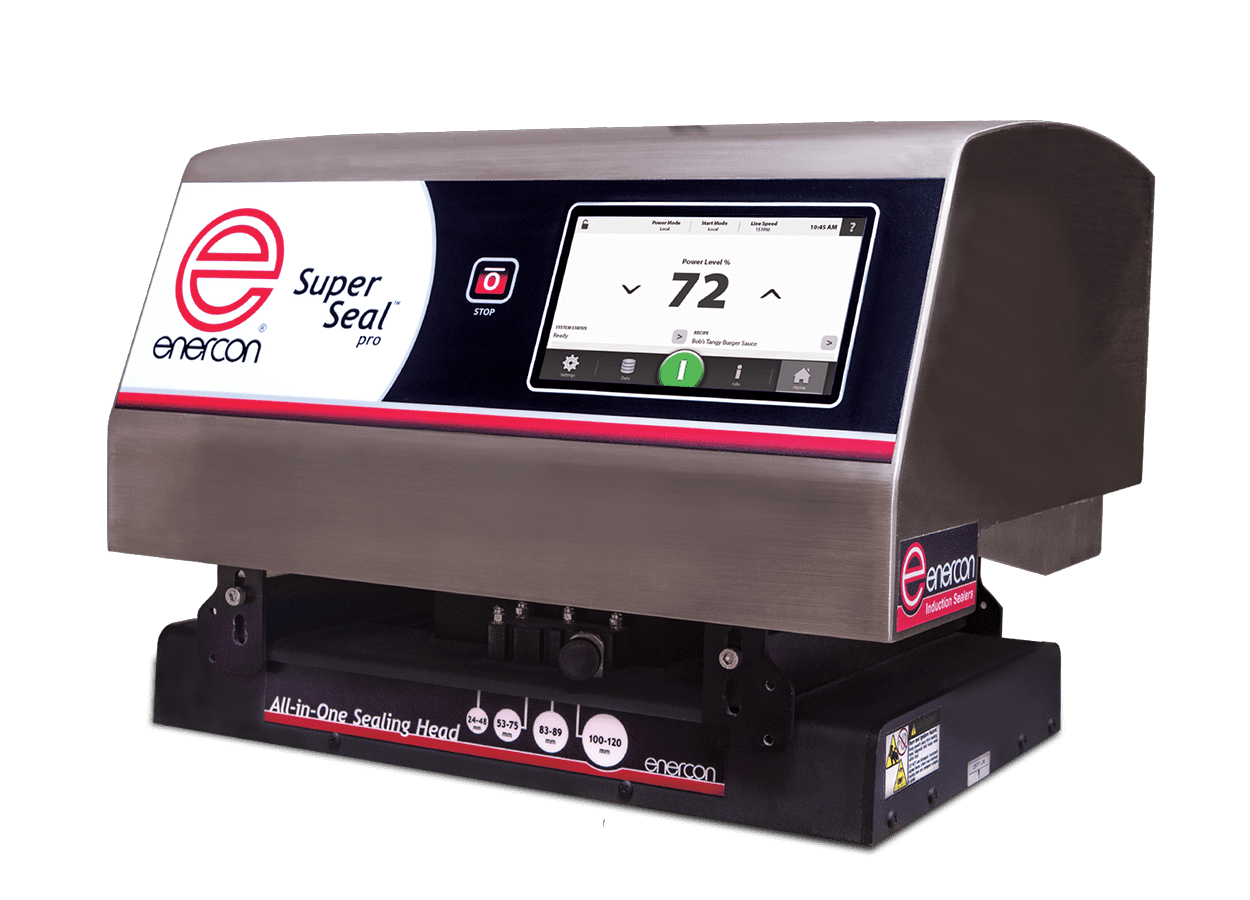

Super Seal™ Pro Induction Cap Sealer

Enercon’s Super Seal™ Pro is the most advanced induction cap sealer on the market.

The system features a highly responsive 7” touch screen that provides operators with an intuitive experience. The larger screen enables advanced controls supporting remote, recipe and local operating modes and the addition of maintenance reminders.

The Super Seal™ Pro's help screens instruct operators how to verify if the conveyor, containers, and sealer are set up properly. Troubleshooting tips with visuals are also provided. And, a QR code links to Enercon’s support website for access to videos, detailed how-to articles, and the opportunity to start a support case if needed.

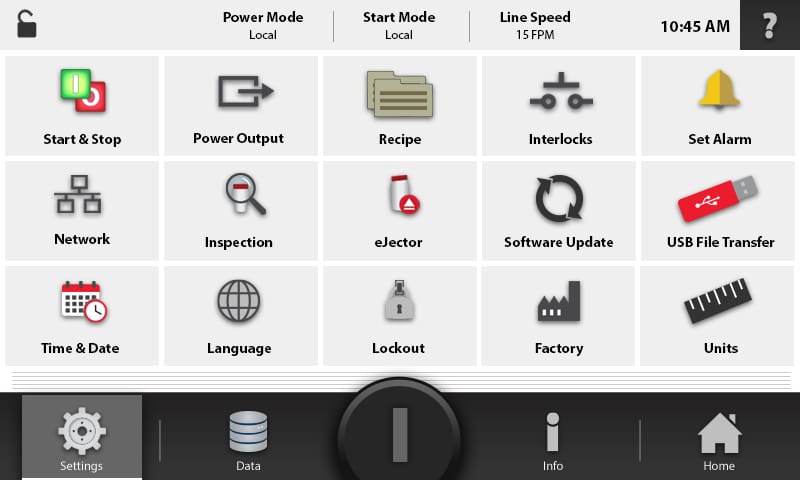

Super Seal™ Pro Settings Screen
Super Seal™ Pro Align Conveyor Screen

Operators will enjoy the sealer’s advanced microprocessor control and internal intelligence that monitors all operating parameters & provides them with detail fault information & integrated troubleshooting assistance. Optional cap inspection is controlled through the interface and includes an LED container centering guide with integrated control for all inspection & rejection functions.

Enercon systems are designed to operate in a maximum ambient temperature of 40°C (104°F) @ 80% relative humidity, non-condensing.

Super Seal™ Pro

KEY FEATURES For Successful Induction Sealing

  • 7” touchscreen provides operators with setup, operation, & troubleshooting assistance

  • QR codes link to Enercon’s support website for more details & the ability to start a support case if needed.

  • Recipe management, remote start/stop and remote power control

  • Detailed fault, event & maintenance logging

  • Optional network connectivity, inspection and container monitoring

  • Compatible with existing sealing heads

  • Stainless steel enclosure, IP55 – safe for wash down

  • Universal input voltage compatibility (200V through 240V)

THE KEY TO INDUCTION SEALING Advanced Sealing Head Technology

Enercon customers who would like to upgrade to this new technology will be pleased to learn they can use their current sealing heads with the new system.

Sealing Heads:

Flat Sealing Head

Flat

Tunnel Sealing Head

Tunnel

cap-deeptunnel

Deep Tunnel

All-in-One Sealing Head

All-in-One

OPTIONS Cap Inspection Options

Foil caps should never sit idle under an active induction sealing head. Add these sensor packages to your system for additional safety:

Detects a stalled container under the sealing head and automatically turns off the sealer.

Container Backup Detection

Detects container backups entering and exiting the sealer automatically turning the sealer off should this occur.

Add Quality Control to your operation with these options:

Foil Detection

Ensures foil is present in every cap prior to sealing.

Cocked Cap Detector

Detects if a cap is not properly seated on bottle.

LED Bottle Centering Guide

Provides operators with a beacon to easily align containers under the center of the sealing head.

Super Seal™ Touch on Deluxe Cart

OPERATION:

Flashing Light Indicator

Easily alerts operators of operating status from a distance.

Spare Parts Kits

Be sure your system always has backup parts. Special discounts when purchased with system.

INSTALLATION:
